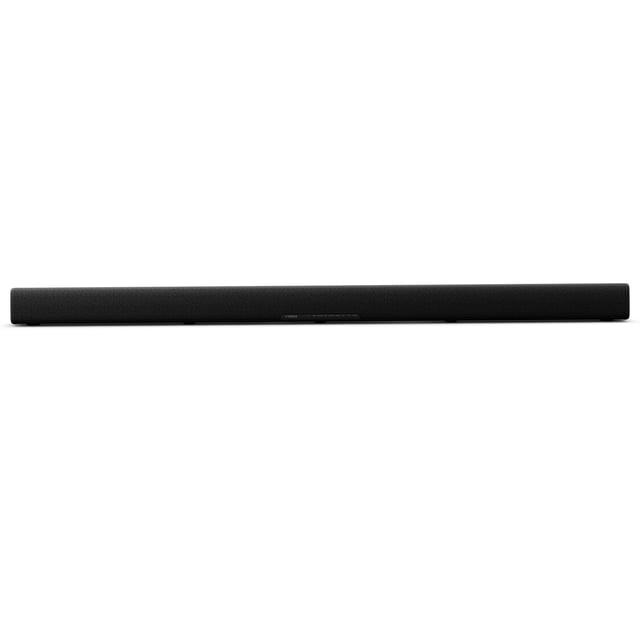

yamaha true x bar 40a dolby atmos sound bar with built-in subwoofers, wi-fi, music streaming, optional wireless subwoofer and surrounds front-facing, centered view of a slim black sound bar with fabric grille and small centered display; low-profile silhouette for placement under a TV or wall mounting, notes built-in dual subwoofer drivers and Wi‑Fi/Bluetooth streaming support, suitable as a compact main soundbar for small living rooms or bedrooms.
Yamaha True X Bar 40A Dolby Atmos Sound Bar with Built-in Subwoofers, Wi-Fi, Music Streaming, Optional Wireless Subwoofer and Surrounds
Hero image 0 of Yamaha True X Bar 40A Dolby Atmos Sound Bar with Built-in Subwoofers, Wi-Fi, Music Streaming, Optional Wireless Subwoofer and Surrounds, 0 of 11
Yamaha

Yamaha True X Bar 40A Dolby Atmos Sound Bar with Built-in Subwoofers, Wi-Fi, Music Streaming, Optional Wireless Subwoofer and Surrounds

|13 ratings

Smart summary

Generated by AI
  • Sound From Above

    Sound From Above

    Up-firing drivers and Dolby Atmos create immersive 3D sound.
  • Hear Every Word

    Hear Every Word

    Clear Voice technology enhances spoken dialogue so you never miss a plot point.
  • Built-In Bass

    Built-In Bass

    Two built-in subwoofer drivers provide remarkable bass from a single low-profile unit.
  • Fits Below Your TV

    Fits Below Your TV

    The slim, low-profile cabinet sits neatly on furniture or mounts to the wall.
  • Stream Music Easily

    Stream Music Easily

    Built-in Wi-Fi and Bluetooth let you stream directly via AirPlay 2 and Spotify.

Specifications

Number of Channels: 2.1.2

Peak Wattage: 180

Surround Sound Supported Formats:

Hi-Res Audio:

Supported Audio Formats: Dolby Atmos, Dolby Digital, Dolby Digital Plus,

Dolby TrueHD, LPCM/PCM (via HDMI)

Works with Google Assistant: Not supported

Number of Speakers: 6 drivers (2 front L/R + 2 up-firing + 2 built-in subwoofer)

Subwoofer Type: Built-in dual subwoofers

Rear Satellite Speakers: Optional, sold separately True X speakers

Remote Control Included: Yes

Cable(s) Included: AC power cable, Optical cable"

Mounting Option: Wall-mountable (spacers and template included)

Separate Subwoofer Included: No

Additional Accessories Included: Wall spacers, mounting template, documentation

Number of Digital Optical Inputs: 1

Number of HDMI Inputs: 1

Number of HDMI Outputs: 1 (eARC)

Number of 3.5mm Audio Inputs: 0

Number of USB Ports: 1 (service/firmware)

Wireless Connectivity: Wi-Fi, Bluetooth 5.0, AirPlay 2, Spotify Connect, TIDAL Connect

4K HDMI Passthrough (HDCP 2.2): Yes (4K passthrough)

Audio Return Channel (ARC): Yes, eARC/ARC supported

Available Modes: Stereo, Standard, Movie, Game

Output Leveling: N/A

Soundbar Height: 2.5 in (63 mm)

Soundbar Width: 40in (1015 mm)

Soundbar Depth: 4.4in (112 mm)

Subwoofer Height: Built-in

Subwoofer Width: Built-in

Subwoofer Depth: Built-in

Current price is $159.00
Prices may vary in club and online
Add a protection plan
How do you want your item?

Shipping

Free for Plus on eligible orders over $50
Columbus, 43215
Arrives by Tue, Nov 3
Return or replace within 90 days.
Sam's credit card
Limited time! Get a $60 statement credit when you open an account between 10/28-12/2 and use it to make $30 in eligible Sam’s Club purchases within 30 days¹
We also recommend

SAMSUNG 3.1.2 Channel Soundbar w/Dolby Atmos 5.1 - HW-QS700F $699.00

SAMSUNG 3.1.2 Channel Soundbar w/Dolby Atmos 5.1 - HW-QS700F
current price $699.00

SAMSUNG 3.1.2 Channel Soundbar w/Dolby Atmos 5.1 - HW-QS700F

4.7315 out of 5 stars
4.7315 out of 5 Stars. 257 reviews
Sponsored

About this item

Product details

Yamaha True Sound: Experience cinema-like sound at home with the clarity, realism and detail you expect from Yamaha.

Dolby Atmos: Employing Dolby Atmos technology and multiple speaker drivers – including up-firing drivers to add height effects – the 40A envelopes you in spacious 3D sound, enhancing all your movies, shows and music like never before.

Hear the dialogue: Our advanced, proprietary Clear Voice technology lets you hear every word of dialogue, so you never miss a plot point.

Stream all your music: Built-in Wi-Fi gives you stable, high-quality streaming via Spotify Connect, AirPlay 2 for Apple Music and more. Use Bluetooth to stream anything you want.

Easy setup and control: A simple connection to any TV. For HDMI eARC compatible TVs, use a single HDMI cable (sold separately) for the best sound performance and control. Use your TV’s remote for everyday functions, the included remote control for deep settings or download the free control app.

Built-in subwoofers+optional sub: The 40A comes with two subwoofer drivers built into the bar, providing remarkable bass from a single, low-profile unit.

Surround-exapandable: Want even more immersive sound? Add two True X Speaker 1A wireless speakers (sold separately) for real surround sound. Plus, they double as portable Bluetooth speakers, switching from Surround to Solo mode at the touch of a button.

Slim and flexible design: The 40A sports a sleek, low-profile design that fits neatly in front of your TV when placed on furniture or can be wall-mounted using built-in keyholes.

Enjoy complimentary Apple Service Trials with this purchase

Redemption instructions will be emailed post purchase. Terms apply.

info:
If the item details above aren't accurate or complete, we want to know about it.

Key specifications

Specifications

Number of Channels: 2.1.2

Peak Wattage: 180

Surround Sound Supported Formats:

Hi-Res Audio:

Supported Audio Formats: Dolby Atmos, Dolby Digital, Dolby Digital Plus,

Dolby TrueHD, LPCM/PCM (via HDMI)

Works with Google Assistant: Not supported

Number of Speakers: 6 drivers (2 front L/R + 2 up-firing + 2 built-in subwoofer)

Subwoofer Type: Built-in dual subwoofers

Rear Satellite Speakers: Optional, sold separately True X speakers

Remote Control Included: Yes

Cable(s) Included: AC power cable, Optical cable"

Mounting Option: Wall-mountable (spacers and template included)

Separate Subwoofer Included: No

Additional Accessories Included: Wall spacers, mounting template, documentation

Number of Digital Optical Inputs: 1

Number of HDMI Inputs: 1

Number of HDMI Outputs: 1 (eARC)

Number of 3.5mm Audio Inputs: 0

Number of USB Ports: 1 (service/firmware)

Wireless Connectivity: Wi-Fi, Bluetooth 5.0, AirPlay 2, Spotify Connect, TIDAL Connect

4K HDMI Passthrough (HDCP 2.2): Yes (4K passthrough)

Audio Return Channel (ARC): Yes, eARC/ARC supported

Available Modes: Stereo, Standard, Movie, Game

Output Leveling: N/A

Soundbar Height: 2.5 in (63 mm)

Soundbar Width: 40in (1015 mm)

Soundbar Depth: 4.4in (112 mm)

Subwoofer Height: Built-in

Subwoofer Width: Built-in

Subwoofer Depth: Built-in
