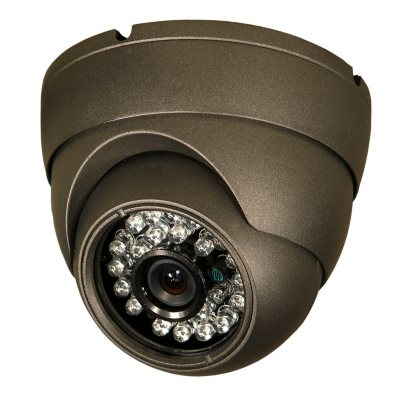

Piczel Model 1054 Tamper Proof Indoor/Outdoor IR CCD Turret Dome

by Piczel | Item  #: 244363 | Model #:  1054 |
Piczel Model 1054 Tamper Proof Indoor/Outdoor IR CCD Turret Dome
We're sorry, this item is not available in your selected Club.  Check another Club

About this item

  • Stylish design looks great indoors or outdoors
  • Tamper proof cast aluminum case
  • 24 IR LEDs for operation in total darkness
  • Super HAD CCD™ imager for accurate picture reproduction
  • Description

    Cameras with accurate reproduction that work almost anywhere
    Turret dome cameras offer the stylish look and tamper proof features of a metallic dome camera, plus the night vision and weatherproof capabilities of a bullet camera. The 3-axis internal ball design allows you position the camera on target. The 24 Infrared emitting LEDs allow night vision for reflective objects up to 65 feet away, and facial recognition up to 15 feet. The rugged cast aluminum case protects the camera and cable from tampering. Cameras can be used outdoors when mounted under a protective covering from direct rain such as an awning, eave, or soffit. Accurate daylight color reproduction is ensured by the Sony Super HAD CCD™ imager. "White" colored grass, trees, and other similar vegetation is not an issue as displayed by lower end CMOS/IR LED type cameras.


    Camera Type:Turret Dome
    Number of Cameras:1
    Image Sensor Type:Sony Super HAD CCD™
    TV Lines:420
    Effective Pixels:250K
    Focal Length (35mm Equivalent):3.6mm (20mm equivalent)
    Pan-Tilt-Zoom Capability:Not Available
    Optical Zoom:Not Available
    Angle of View:92 Degrees
    Color or Black and White:Color
    Wireless Camera-DVR Connection:Not Available
    Audio Capability:Not Available
    Number of Infrared LEDs:24
    Night Vision Distance:65 feet reflective objects / 15 feet facial recognition
    Recommended for Outdoor Use:Yes - Camera should be mounted under an awning or eave
    Weather Resistance (IP Rating):IP66
    Operating Temperature:14° F ~ 122° F
    Operating Humidity:95% Max
    Tamper Protection:Yes
    Compatible DVRs:All Piczel brand DVRs, plus all professional brands (BNC is the CCTV Industry Standard)
    Compatible Cables and Connector Type:BNC Video / 2.1mm DC Power - Piczel 50' Model 2210 (543979) or Piczel 100' Model 2220 (543987)
    Length of Cable Included:50' Video/power cable for each camera
    Camera Dimensions:3.7" x 3.5"
    Technical Support
    Phone Number:1-800-774-0284
    Hours of Availability:8:00AM - 9:00PM M-F & 10:00AM - 4:00PM Sat. Eastern Time Zone
    Web Support URL:www.piczel.com
    Package Contents
    IR Turret Dome Camera
    50' Video/Power cable
    Regulated power supply
    Mounting hardware

    Assembled Country


    Assembled Size

  • Dimensions: 3.7" x 3.5"
  • Weight: 1.0 lbs
