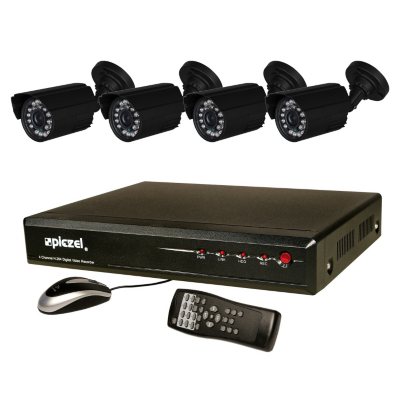

Piczel 7007 4-Channel Surveillance System - 500GB Hard Drive, 4 Weatherproof IR Bullet Cameras

by Piczel | Item  #: 611250 | Model #:  7007 |
Piczel 7007 4-Channel Surveillance System - 500GB Hard Drive, 4  Weatherproof IR Bullet Cameras
We're sorry, this item is not available in your selected Club.  Check another Club

About this item

  • 500GB surveillance grade hard drive
  • 4 weatherproof bullet cameras w/24 IR LEDs
  • 3G/4G Smartphone monitoring and email alerts
  • Mobile Compatibility: iPhone, Android, Blackberry, Symbian, Windows

  • Description

    A total coverage system with the latest technology

    The new Piczel 7007 provides everything you need to connect and operate the plug-and-play components in the box. The four channel pentaplex DVR incorporates the latest dual stream H.264 video codec technology. Up to four times more video is stored on the same size hard drive as previous models. Piczel's dual stream video processing records the highest quality video possible to the hard drive while adjusting the image compression to optimize the DVR's internet transmission speed. Catch all of the action with global recording speeds up to 120 ips (30 ips per channel). Smartphone monitoring, e-mail with images, SMS text messaging with an image, or standard text only alarm notification messages provide maximum access and connectivity while you are on the move. The included Central Monitoring Station (CMS) Software gives you the ability to monitor up to 64 cameras on one PC screen (including all 4 from this DVR), with video streaming from multiple DVRs from the Piczel 5200 series, plus the 7009, 7011, and 7200 series systems.

    Selectable grid video motion detection and fast event search

    Video motion detection can be set to record activity to the hard drive, log the event in a list to simplify searches at a future date, and send an e-mail with an attached image of what just happened. To make the video motion detection more accurate and useful, a 13 column by 10 row grid of squares is displayed over each camera view during the motion detection setup process (see the included graphic with the product photos). With 130 small squares superimposed on a camera's view, you can select each square that you choose to be active, triggering an alarm event when there is activity in front of the square. By the same process, you can deactivate any square that lies in an area of known activity that would cause a false alarm, such as a pathway for a pet, or a public access area. Database like storage of video files make retrieval of events a snap. Drill down your searches by date, time, camera, and event type to quickly find the information you are looking for. Play the event or click on to save your selected video to a flash (thumb) drive. While reviewing events from the DVR via the internet, you can easily save the data file to your computer. You can also take a quick snapshot or record live streaming to your PC as you see it happen! Alpha-numeric on-screen titles can be generated for each channel making identification of the source location much easier. 16 external alarm contact inputs add to the flexibility of how events are recorded and alarm e-mail notifications are sent, including the all new Piczel Video Temp Alert (Sam's # 244398). This exclusive accessory displays the temperature of your home or business's monitored area on a cameras video, and triggers the DVR's e-mail feature when there is a problem with heating, cooling, refrigeration units, etc.

    Intuitive menus and controls

    Colorful on-screen graphics and descriptive icons make navigation of the menus and control of the DVR very intuitive and easy to use. A PC type mouse allows you to quickly click and drag over schedules, motion detection grids, and on-screen DVR controls. An IR remote control is also included for ease of operation. Pentaplex capability allows you to view live video, record all channels, play back selected channels, connect via the internet, and back up a file all at the same time. Motorized Pan/Tilt/Zoom (PTZ) cameras, such as the Piczel 3500 series can be controlled with the mouse, IR remote, PC, or via free mobile phone apps. Timed, motion detection, and "NO" recording can be scheduled for any hour of any day for each camera, giving you total control over what to record, and when. Back up or copy video files quickly to a flash drive via a USB 2.0 port, or to a PC via the internet. Generate your own private password to access all data and functions, or user passwords that offer limited access.

    Cameras with night vison in a rugged cast aluminum case with tamper proof cable

    The cast aluminum weatherproof case provides a long-lasting, durable enclosure for the 420 line resolution imager and LEDs. The video / power cable is also protected from the elements and vandalism since it is housed inside the versatile swivel mounting bracket. The imager and LEDs are optically isolated as both items are mounted in their own compartments, holding IR reflection and halo effect to a minimum. Typical IR range produces facial recognition at 20 feet and general surveillance in excess of 40 feet for reflective surfaces. The cameras are weatherproof for use outdoors, however installation under an eave, soffit, or awning is always a preferred location.

    Plug-N-Play installation with lifetime customer support

    All Piczel systems are packaged with everything you need to connect and operate the system with no special tools required. Locating a power source near a cameras is not necessary as all power and video connections are done at the location of the DVR. Industry standard locking BNC video connectors are used on all cameras and DVRs making them compatible with systems and accessories built by other professional CCTV manufacturers. Toll free (USA based) lifetime customer support with technicians available to remotely connect to your system (with your authorization) and help you configure your connection to the internet!


    Number of Cameras:4 Weatherproof IR Bullet
    Number of Channels:4
    Hard Drive Space:500GB surveillance grade hard drive
    Wired or Wireless:Wired
    Average Minimum Setup Time:4 Hours - Types of walls and ceilings on site will vary time spent on installation. Note: All connections are Plug-N-Play.
    DVR Model:5204
    Number of Channels:4
    Number of Channels with Audio:Not available
    Hard Drive Size:500GB surveillance grade hard drive
    Maximum Hard Drive Expandability:2TB
    Recording Resolution:NTSC:D1(704*480),HD1(704*240),CIF(352*240)
    Recording Frames per Second:60 ips/D1, 120ips/HD1, 120ips/CIF
    Recording Compression:H.264
    Recording Modes Available:Continuous, Scheduled, Video Motion Detection
    Wireless Camera Receiver:Not available
    Video Motion Detection Recording:Yes (130 point selectable grid 13 x 10)
    Pre-Event Recording/Capacity:Not available
    Mobile App Viewing:iPhone, Android, Blackberry, Symbian, Windows
    E-Mail Alert Notification:Yes
    Maximum Number of Remote Viewers:5
    Playback and Search Options:Pause, Step (1 frame at a time), 2x, 4x, 8x, (& 16x via Network)
    Data Backup Options:USB 2.0 Flash drive, LAN or Internet to PC
    Digital Zoom:Yes
    Pan-Tilt-Zoom Controls:Yes
    Still Frame Capture:Yes
    Alarm Terminal Trigger Recording / # of Inputs:Not available
    External Alarm Ouput Contact(s):Not available
    Operating System:NTSC, PAL
    Included Accessories:IR Remote Control with batteries, Mouse, Regulated Power Supply, LAN Cable, BNC Cable, & CMS Software
    Camera Cable Connection Type:BNC
    Compatible Cameras:All Piczel brand cameras, plus all professional brands (BNC is the CCTV Industry Standard)
    DVR Dimensions:13.9" x 9" x 1.8"
    Camera Model and Type:Weatherproof IR Bullet
    Number of Cameras:4
    Image Sensor Type:1/4" CMOS
    TV Lines:420
    Resolution:NTSC: 648(H) x 488(V)
    Effective Pixels:317K
    Focal Length (35mm Equivalent):3.6mm (20mm Equivalent)
    Pan-Tilt-Zoom Capability:Not Available
    Optical Zoom:Not Available
    Angle of View:92 degrees
    Color or Black and White:Color
    Wireless Camera-DVR Connection:Not Available
    Audio Capability:Not Available
    Number of Infrared LEDs:24
    Night Vision Distance:40' reflective objects, 20' facial recognition
    Recommended for Outdoor Use:YES
    Weather Resistance (IP Rating):IP67
    Operating Temperature:14F° ~ 122°F
    Operating Humidity:95% Max
    Tamper Protection:Not Available
    Compatible DVRs:All Piczel brand DVRs, plus all professional brands (BNC video input connection is the CCTV Industry Standard)
    Compatible Cables and Connector Type:BNC Video / 2.1mm DC Power - Piczel 50' Model 2210 (543979) or Piczel 100' Model 2220 (543987)
    Length of Cable Included:50'
    Camera Dimensions:4.0"L x 2.5"D
    Technical Support
    Phone Number:1-800-774-0284
    Hours of Availability:9:00AM - 9:00PM M-F & 10:00AM - 4:00PM Sat. Eastern Time Zone
    Web Support URL:www.piczel.com
    Package Contents
    DVR w/hard drive, mouse, remote, LAN cable
    (4) Weatherproof IR bullet cameras
    (4) 50' Camera Video/Power cables
    (1) DVR power supply
    (1) Multi-camera power supply
    Camera mounting hardware
    Printed owner's manual
    CD with: CMS software, AVI File Converter, & PDF Owner's Manual
    Window warning decals

    Assembled Country

    China / USA

    Assembled Size

  • Dimensions: Master carton: 18"L x 12"D x 12"H
  • Weight: Master carton: 20 lbs.
