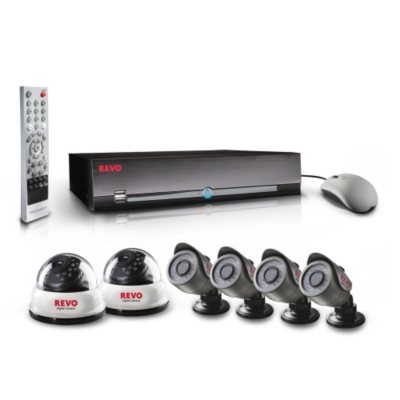

REVO America 8 Channel Surveillance System, 2 540 TVL Dome cameras, 4 540 TVL Bullet cameras

by Revo | Item  #: 234024 | Model #:  R8D2CB4C-1000 | (1) |
REVO America 8 Channel Surveillance System, 2 540 TVL Dome cameras, 4 540 TVL Bullet cameras



We're sorry, this item is not available in your selected Club.  Check another Club

About this item

  • 8 Channel H.264 DVR with 1000GB Hard drive
  • Real-Time Recording. 240 images per second.
  • Cables/brackets and mounts included
  • 6 super high resolution cameras
  • Description

    8-channel 1000 GB H.264 DVR security system is perfect for small to medium surveillance installations. This system features a DVR with 1000 GB hard drive for storage and H.264 video compression with 6 super-high resolution cameras; 2 indoor dome cameras and 4 bullet cameras built to operate in both indoor and outdoor applications.

    Specifications

    System
    Number of Cameras:6
    Number of Channels:8
    Hard Drive Space:1000 GB Hard Drive
    Wired or Wireless:Wired
    Average Minimum Setup Time:30 Mins
    DVR
    Number of Channels:8
    Hard Drive Size:1000 GB Hard Drive
    Maximum Hard Drive Expandability:3000 GB Hard Drive
    Recording Resolution:NTSC:D1(720*480)
    Recording Frames per Second:240 ips (NTSC), @ CIF
    Recording Compression:H.264, Continuous, Scheduled, Motion Record
    Recording Modes Available:Continuous Record, Scheduled Record, Motion Record
    Wireless Camera-DVR Connection:No
    Video Motion Detection Recording:Yes
    Pre-Event Recording/Capacity:Yes
    Mobile App Viewing:yes, Iphone, Android
    E-Mail Alert Notification:Yes
    Maximum Number of Remote Viewers:10 at one time
    Playback and Search Options:USB Flash drive, DVD, SD card, online backup
    Data Backup Options:USB Flash drive, DVD, SD card, online backup
    Digital Zoom:Yes
    Pan-Tilt-Zoom Controls:Yes
    Still Frame Capture:Yes
    Alarm Terminal Trigger Recording / # of Inputs:Yes
    External Alarm Ouput Contact(s):Yes
    Operating System:NTSC, PAL
    Included Accessories:IR Remote Control, Mouse, Remote viewing software
    Camera Cable Connection Type:BNC
    Compatible Cameras:Compatible with all cameras from REVO America
    DVR Dimensions:16.9'W x 3.5'H x 15.9'D
    Camera 1
    Camera Type:RCDY24-1 (Dome)
    Number of Cameras:2
    Image Sensor Type:Yes
    TV Lines:540 TVL
    Resolution:540 TVL
    Effective Pixels:540x480
    Aperture:F1.2
    Focal Length (35mm Equivalent):3.6 mm
    Pan-Tilt-Zoom Capability:None
    Optical Zoom:None
    Angle of View:69° Horizontal, 54° Vertical, 81° Diagonal
    Color or Black and White:Both
    Wireless Camera-DVR Connection:No, Wired connection only
    Audio Capability:Yes
    Number of Infrared LEDs:24 IR's
    Night Vision Distance:66'
    Recommended for Outdoor Use:No
    Weather Resistance (IP Rating):No
    Operating Temperature:14°F - 122°F
    Operating Humidity:0%RH - 70%RH
    Tamper Protection:No
    Compatible DVRs:RJ12/BNC
    Compatible Cables and Connector Type:RJ12/BNC
    Length of Cable Included:60'
    Camera Dimensions:7'L x 6.25"W x 4.25"H
    Camera 2
    Camera Type:RCBY24-1 (Bullet)
    Number of Cameras:4
    Image Sensor Type:Yes
    TV Lines:540 TVL
    Resolution:540 TVL
    Effective Pixels:540x480
    Aperture:F1.2
    Focal Length (35mm Equivalent):3.6 mm
    Pan-Tilt-Zoom Capability:No
    Optical Zoom:No
    Angle of View:69° Horizontal, 54° Vertical, 81° Diagonal
    Color or Black and White:Both
    Wireless Camera-DVR Connection:No, Wired connection only
    Audio Capability:Yes
    Number of Infrared LEDs:24 IR's
    Night Vision Distance:66'
    Recommended for Outdoor Use:Yes
    Weather Resistance (IP Rating):Yes
    Operating Temperature:14°F - 122°F
    Operating Humidity:0%RH - 70%RH
    Tamper Protection:No
    Compatible DVRs:RJ12/BNC
    Compatible Cables and Connector Type:RJ12/BNC
    Length of Cable Included:60'
    Camera Dimensions:7'L x 6.25"W x 4.25"H
    Technical Support
    Phone Number:866-625-7386
    Hours of Availability:8:00 AM - 6:30 PM Central, Monday - Friday
    Web Support URL:www.revoameric.com
    Package Contents
    6 x 60', RJ12 Cable
    Remote
    Mouse
    Remote Viewing software

    Assembled Country

    South Korea

    Assembled Size

  • 20"W x 14"H x 20"D
  • 36 lbs.
  • Component Country

    Imported
