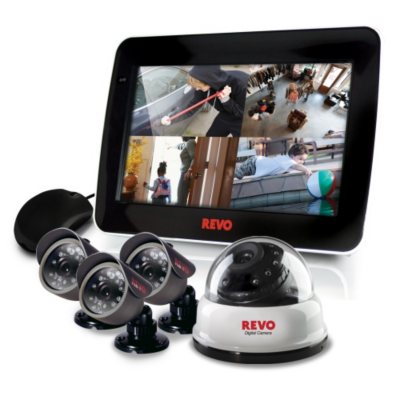

REVO America 4 Channel Combo System, with 1 Dome Camera, and 3 Bullet Cameras

by Revo | Item  #: 234068 | Model #:  R4D1BB3BCMB-500 | (2) |



REVO America 4 Channel Combo System, with 1 Dome Camera, and 3 Bullet Cameras
We're sorry, this item is not available in your selected Club.  Check another Club
  • 500 GB Hard drive space
  • H.264 Compression
  • 540 TVL cameras, 3.6 mm Lens
  • Description

    The Professional 4 Channel combo system with 500 GB of hard drive space, comes with (1) 540 TVL Dome camera for indoor use and (3) 540 TVL bullet cameras for indoor/outdoor use.

    Specifications

    System
    Number of Cameras:(1) RCDY12-1 540 TVL, (3) RCBY12-1 540 TVL
    Number of Channels:4
    Hard Drive Space:500 GB
    Wired or Wireless:Wired
    Average Minimum Setup Time:25 Mins
    DVR
    Number of Channels:4
    Hard Drive Size:500 GB HDD
    Maximum Hard Drive Expandability:2 TB
    Recording Resolution:D1(720*480)
    Recording Frames per Second:480 ips (NTSC), @ CIF
    Recording Compression:H.264, Continuous, Scheduled, Motion Record
    Recording Modes Available:Continuous Record, Scheduled Record, Motion Record
    Wireless Camera-DVR Connection:No
    Video Motion Detection Recording:Yes
    Pre-Event Recording/Capacity:Yes, Iphone, Android
    Mobile App Viewing:Yes
    E-Mail Alert Notification:Yes
    Maximum Number of Remote Viewers:10 at one time
    Playback and Search Options:USB Flash drive, DVD, SD card, online backup
    Data Backup Options:USB Flash drive, DVD, SD card, online backup
    Digital Zoom:Yes
    Pan-Tilt-Zoom Controls:No
    Still Frame Capture:Yes
    Alarm Terminal Trigger Recording / # of Inputs:No
    External Alarm Ouput Contact(s):No
    Operating System:NTSC
    Included Accessories:IR Remote Control, Mouse, Remote viewing software
    Camera Cable Connection Type:RJ12
    Compatible Cameras:Compatible with all cameras from REVO America
    DVR Dimensions:15"W x 14"H x 8.5"D
    Camera 1
    Camera Type:RCDY12-1 (Dome)
    Number of Cameras:1
    Image Sensor Type:Yes
    TV Lines:540 TVL
    Resolution:540 TVL
    Effective Pixels:540x480
    Aperture:F1.2
    Focal Length (35mm Equivalent):3.6 mm
    Pan-Tilt-Zoom Capability:None
    Optical Zoom:None
    Angle of View:69° Horizontal, 54° Vertical, 81° Diagonal
    Color or Black and White:both
    Wireless Camera-DVR Connection:No, Wired connection only
    Audio Capability:Yes
    Number of Infrared LEDs:12 IR's
    Night Vision Distance:33'
    Recommended for Outdoor Use:No
    Weather Resistance (IP Rating):No
    Operating Temperature:14°F - 122°F
    Operating Humidity:0%RH - 70%RH
    Tamper Protection:No
    Compatible DVRs:RJ12/BNC
    Compatible Cables and Connector Type:RJ12/BNC
    Length of Cable Included:60'
    Camera Dimensions:7'L x 6.25"W x 4.25"H
    Camera 2
    Camera Type:RCBY12-1 (Bullet)
    Number of Cameras:3
    Image Sensor Type:Yes
    TV Lines:540 TVL
    Resolution:540 TVL
    Effective Pixels:540x480
    Aperture:F1.2
    Focal Length (35mm Equivalent):3.6 mm
    Pan-Tilt-Zoom Capability:No
    Optical Zoom:No
    Angle of View:69° Horizontal, 54° Vertical, 81° Diagonal
    Color or Black and White:Both
    Wireless Camera-DVR Connection:No, Wired connection only
    Audio Capability:Yes
    Number of Infrared LEDs:12 IR's
    Night Vision Distance:33'
    Recommended for Outdoor Use:Yes
    Weather Resistance (IP Rating):Yes
    Operating Temperature:14°F - 122°F
    Operating Humidity:0%RH - 70%RH
    Tamper Protection:No
    Compatible DVRs:RJ12/BNC
    Compatible Cables and Connector Type:RJ12/BNC
    Length of Cable Included:60'
    Camera Dimensions:7'L x 6.25"W x 4.25"H
    Monitor
    Type:LED
    Size:10.1"
    Signal Inputs:VGA/ RCA
    Maximum Resolution:Not specified
    Aspect Ratio:Not specified
    Native Contrast Ratio:Not specified
    Brightness (NITS):Not specified
    Response Time:Not specified
    Viewing Angle:Not specified
    Speakers with Volume Control:Yes
    Technical Support
    Phone Number:866-625-7386
    Hours of Availability:8:00 AM - 6:30 PM Central, Monday - Friday
    Web Support URL:www.revoamerica.com
    Package Contents
    1
    1
    3
    No
    4x 60', RJ12 Cable
    The DVR is the Monitor
    Remote
    Mouse
    Remote Viewing software

    Details

    Assembled Country

    South Korea

    Assembled Size

  • 15W" x 14"H x 8.5"D
  • 18 lbs.
  • Component Country

    Imported
