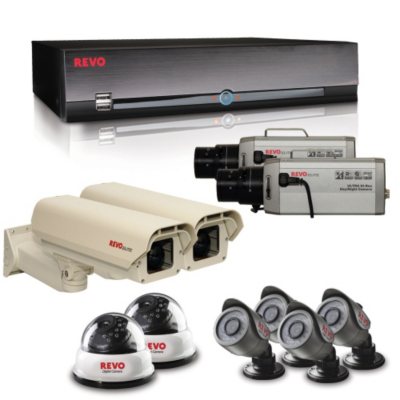

REVO America 16 Channel Surveillance System, 2 540 TVL Dome Cameras, 4 540 TVL Bullet Cameras, 2 600 TVL Box Cameras
REVO America 16 Channel Surveillance System, 2 540 TVL Dome Cameras, 4 540 TVL Bullet Cameras, 2 600 TVL Box Cameras
by Revo
|
Item# 234117
|Model#:RE16BNDL5-3000
|
(1)
|
(1)
|
Description
This 16-channel 3 TB H.264 DVR security system is perfect for medium to large surveillance installations. It features a DVR with 3TB hard drive for storage, H.264 video compression, and D1 Resolution. 8 super-high resolution cameras; 2 indoor dome cameras, 4 bullet cameras built to operate in both indoor and outdoor applications, and 2 commercial grade box cameras with enclosure housing.
Specifications
| System | |
| Number of Cameras: | (4) 540 TVL Bullet cameras, (2) 540 TVL Dome cameras, (2) 600 TVL Box cameras |
| Number of Channels: | 16 |
| Hard Drive Space: | 3000 GB Hard Drive |
| Wired or Wireless: | Wired |
| Average Minimum Setup Time: | 30 mins | DVR |
| Number of Channels: | 16 |
| Hard Drive Size: | 3 TB HDD |
| Maximum Hard Drive Expandability: | 3 TB HDD |
| Recording Resolution: | NTSC:D1(720*480) |
| Recording Frames per Second: | 480 ips (NTSC), @ CIF |
| Recording Compression: | H.264, Continuous, Scheduled, Motion Record |
| Recording Modes Available: | Continuous Record, Scheduled Record, Motion Record |
| Wireless Camera-DVR Connection: | No |
| Video Motion Detection Recording: | Yes |
| Pre-Event Recording/Capacity: | Yes |
| Mobile App Viewing: | Yes, Iphone, Android |
| E-Mail Alert Notification: | Yes |
| Maximum Number of Remote Viewers: | 10 at one time |
| Playback and Search Options: | USB Flash drive, DVD, SD card, online backup |
| Data Backup Options: | USB Flash drive, SD card, online backup |
| Digital Zoom: | Yes |
| Pan-Tilt-Zoom Controls: | Yes |
| Still Frame Capture: | Yes |
| Alarm Terminal Trigger Recording / # of Inputs: | Yes |
| External Alarm Ouput Contact(s): | Yes |
| Operating System: | NTSC, PAL |
| Included Accessories: | IR Remote Control, Mouse, Remote viewing software |
| Camera Cable Connection Type: | BNC |
| Compatible Cameras: | Compatible with all cameras from REVO America |
| DVR Dimensions: | 16.9'W x 3.5'H x 15.9'D | Camera 1 |
| Camera Type: | RCDY24-1 (Dome) |
| Number of Cameras: | 2 |
| Image Sensor Type: | Yes |
| TV Lines: | 540 TVL |
| Resolution: | 540 TVL |
| Effective Pixels: | 540x480 |
| Aperture: | F1.2 |
| Focal Length (35mm Equivalent): | 3.6 mm |
| Pan-Tilt-Zoom Capability: | None |
| Optical Zoom: | None |
| Angle of View: | 69° Horizontal, 54° Vertical, 81° Diagonal |
| Color or Black and White: | Both |
| Wireless Camera-DVR Connection: | No, Wired connection only |
| Audio Capability: | Yes |
| Number of Infrared LEDs: | 24 IR's |
| Night Vision Distance: | 66' |
| Recommended for Outdoor Use: | No |
| Weather Resistance (IP Rating): | No |
| Operating Temperature: | 14°F - 122°F |
| Operating Humidity: | 0%RH - 70%RH |
| Tamper Protection: | No |
| Compatible DVRs: | RJ12/BNC |
| Compatible Cables and Connector Type: | RJ12/BNC |
| Length of Cable Included: | 60' |
| Camera Dimensions: | 7'L x 6.25"W x 4.25"H | Camera 2 |
| Camera Type: | RCBY24-1 (Bullet) |
| Number of Cameras: | 4 |
| Image Sensor Type: | yes |
| TV Lines: | 540 TVL |
| Resolution: | 540 TVL |
| Effective Pixels: | 540x480 |
| Aperture: | F1.2 |
| Focal Length (35mm Equivalent): | 3.6 mm |
| Pan-Tilt-Zoom Capability: | No |
| Optical Zoom: | No |
| Angle of View: | 69° Horizontal, 54° Vertical, 81° Diagonal |
| Color or Black and White: | Both |
| Wireless Camera-DVR Connection: | No, Wired connection only |
| Audio Capability: | Yes |
| Number of Infrared LEDs: | 24 IR's |
| Night Vision Distance: | 66' |
| Recommended for Outdoor Use: | Yes |
| Weather Resistance (IP Rating): | Yes |
| Operating Temperature: | 14°F - 122°F |
| Operating Humidity: | 0%RH - 70%RH |
| Tamper Protection: | No |
| Compatible DVRs: | RJ12/BNC |
| Compatible Cables and Connector Type: | RJ12/BNC |
| Length of Cable Included: | 60' |
| Camera Dimensions: | 7'L x 6.25"W x 4.25"H | Camera 3 |
| Camera Type: | REXT600-2 (Box Camera) |
| Number of Cameras: | 2 |
| Image Sensor Type: | Yes |
| TV Lines: | 600 TVL |
| Resolution: | 600 TVL |
| Effective Pixels: | 600 x 480 |
| Aperture: | F1.2 |
| Focal Length (35mm Equivalent): | 5.0 - 50 mm |
| Pan-Tilt-Zoom Capability: | No |
| Optical Zoom: | Yes |
| Angle of View: | 51° Horizontal, 40° Vertical, 62° Diagonal - 6° Horizontal, 4° Vertical, 7° Diagonal |
| Color or Black and White: | Wired |
| Wireless Camera-DVR Connection: | No |
| Audio Capability: | None |
| Number of Infrared LEDs: | No |
| Night Vision Distance: | No |
| Recommended for Outdoor Use: | Yes |
| Weather Resistance (IP Rating): | Yes, IP66 |
| Operating Temperature: | 14°F - 122°F |
| Operating Humidity: | 0 ~ 96% (Non-Condencing) |
| Tamper Protection: | Yes |
| Compatible DVRs: | Compatible with all DVRs from REVO America |
| Compatible Cables and Connector Type: | BNC |
| Length of Cable Included: | None |
| Camera Dimensions: | 5.5"W x 9.68"H x 20.5"D | Technical Support |
| Phone Number: | 866-625-7386 |
| Hours of Availability: | 8:00 AM - 6:30 PM Central, Monday - Friday |
| Web Support URL: | www.revoameric.com | Package Contents |
| DVR box | |
| Two RCDY24-1 (Dome) cameras | |
| Four RCBY24-1 (Bullet) cameras | |
| Two REXT600-2 (Box) cameras | |
| Six 60ft RJ12 Cables | |
| Remote | |
| Mouse | |
| Remote Viewing software | |
Details
Assembled Country
South Korea
Assembled Size
Component Country
Imported
Warranty Information
1 year limited manufacturer's warranty.Televisions, laptop and desktop computers, projectors, digital music players, cameras, camcorders, and other electronics must be returned within ninety (90) days.
