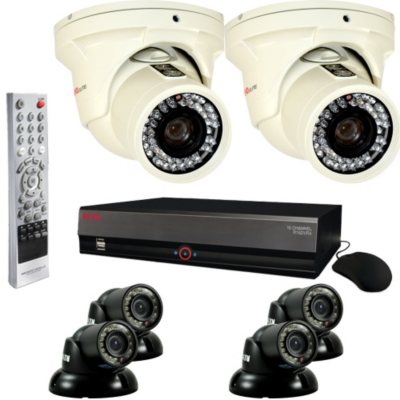

REVO 16 Channel Security System with 4 Mini Turret Cameras, 2 Elite Turret Cameras, and 4TB Hard Drive
by REVO
|
Item #: 280709
|
Model #:
RE16BNDL40-4T
|
Free shipping
- $ 1,299 00 1299.00
- Shipping
- Free shipping
- Enter ZIP Code for shipping options
Delivery estimates, taxes, and fees are based on ZIP Code. Club Pickup orders are based on your club’s current price and item availability on the day of payment.
About this item
Description
The best of REVO products
This system combines the best of REVO products. Starting with the 16 Channel REVO professional DVR that delivers commercial grade type features at affordable prices, two commercial grade indoor/outdoor turret cameras (RETRT600-1) and four indoor/outdoor mini turret cameras (RCTS30-3). The advanced 16 channel DVR produces 480 Images per second and allows real time recording on all channels. EZLink, Picture emails of camera’s current view, Push notifications to most smartphones, as well as full DVR access using your smartphone to control PTZ cameras, search recorded video and monitor audio while you’re on the go via REVO Mobile, a free app, are just a few of the features of this powerful, professional DVR. Also included is a 4TB hard drive that, depending on your settings, can provide months of storage.
Also features the mini turret style and elite turret style cameras
The hefty Turret style vandal proof camera features a total aluminum die cast body that is rated IP66 weather resistant and can be used inside or out. Generating a 600TVL super high resolution color picture, the cameras 42IR’s permit night viewing up to 130FT in 700TVL of black & white. The 6 - 50mm commercial grade varifocal lens allows the camera to be set for tight/up close shots to crisp wide shots. The Quick Connect mini turret cameras have 700 TVL and 30 IR's allowing it to see up to 100' in total darkness. The camera is IP66 rated, making the camera suitable for indoor and outdoor use. 60 ft. of RJ12 cable is included with each Quick Connect camera. For the 2 commercial grade turret cameras, cables and power supplies are sold separately. (RE2440TF & RBNCR59)
This system combines the best of REVO products. Starting with the 16 Channel REVO professional DVR that delivers commercial grade type features at affordable prices, two commercial grade indoor/outdoor turret cameras (RETRT600-1) and four indoor/outdoor mini turret cameras (RCTS30-3). The advanced 16 channel DVR produces 480 Images per second and allows real time recording on all channels. EZLink, Picture emails of camera’s current view, Push notifications to most smartphones, as well as full DVR access using your smartphone to control PTZ cameras, search recorded video and monitor audio while you’re on the go via REVO Mobile, a free app, are just a few of the features of this powerful, professional DVR. Also included is a 4TB hard drive that, depending on your settings, can provide months of storage.
Also features the mini turret style and elite turret style cameras
The hefty Turret style vandal proof camera features a total aluminum die cast body that is rated IP66 weather resistant and can be used inside or out. Generating a 600TVL super high resolution color picture, the cameras 42IR’s permit night viewing up to 130FT in 700TVL of black & white. The 6 - 50mm commercial grade varifocal lens allows the camera to be set for tight/up close shots to crisp wide shots. The Quick Connect mini turret cameras have 700 TVL and 30 IR's allowing it to see up to 100' in total darkness. The camera is IP66 rated, making the camera suitable for indoor and outdoor use. 60 ft. of RJ12 cable is included with each Quick Connect camera. For the 2 commercial grade turret cameras, cables and power supplies are sold separately. (RE2440TF & RBNCR59)
Specifications
| System | |
|---|---|
| Number of Cameras: | 6 |
| Number of Channels: | 16 |
| Hard Drive Space: | 4TB |
| Wired or Wireless: | Wired |
| Average Minimum Setup Time: | Few Hours |
| DVR | |
| DVR Model: | R16DVR4-4T |
| Number of Channels: | 16 |
| Number of Channels with Audio: | 8 |
| Hard Drive Size: | 4TB |
| Maximum Hard Drive Expandability: | 4TB |
| Recording Resolution: | Composite: 720x480 |
| Recording Frames per Second: | 480/480ips (NTSC) |
| Recording Compression: | H.264 |
| Recording Modes Available: | Time-lapse, Pre-event, Motion, Alarm and Panic |
| Wireless Camera Receiver: | NO |
| Video Motion Detection Recording: | Yes |
| Pre-Event Recording/Capacity: | Yes/ 5 seconds typical |
| Mobile App Viewing: | Yes/ iPhone, iPads, Android phones, Android tablets |
| E-Mail Alert Notification: | Yes |
| Maximum Number of Remote Viewers: | Up to 10 at the same time |
| Playback and Search Options: | 2x, 4x |
| Data Backup Options: | USB Flash drive, From REVO software on PC, browser on PC |
| Digital Zoom: | Yes, up to 4X |
| Pan-Tilt-Zoom Controls: | No |
| Still Frame Capture: | Yes |
| Alarm Terminal Trigger Recording / # of Inputs: | Yes/16 |
| External Alarm Output Contact(s): | Not Specified |
| Operating System: | NTSC |
| Included Accessories: | Software CD, Remote, Mouse |
| Camera Cable Connection Type: | RJ12 cable for 4 quick connect cameras |
| Compatible Cameras: | Compatible with all Revo RJ12 cameras and BNC cameras (8 RJ12 ports & 8 BNC ports) |
| DVR Dimensions: | 11.8 x 2.4 x 9.1 |
| Camera 1 | |
| Camera Model and Type: | RCTS30-3 (Mini Turret) |
| Number of Cameras: | 4 |
| Image Sensor Type: | CCD |
| TV Lines: | 700 |
| Resolution: | 700 TVL |
| Effective Pixels: | Not Specified |
| Aperture: | Not Specified |
| Focal Length (35mm Equivalent): | 3.6mm |
| Pan-Tilt-Zoom Capability: | No |
| Optical Zoom: | No |
| Angle of View: | 69° Horizontal, 54° Vertical, 81° Diagonal |
| Color or Black and White: | Color |
| Wireless Camera-DVR Connection: | Wired |
| Audio Capability: | Yes |
| Number of Infrared LEDs: | 30 |
| Night Vision Distance: | 100 FT |
| Recommended for Outdoor Use: | Yes |
| Weather Resistance (IP Rating): | IP66 |
| Operating Temperature: | 0°F - 122°F |
| Operating Humidity: | 0%RH - 70%RH |
| Tamper Protection: | No |
| Compatible DVRs: | RJ12 |
| Compatible Cables and Connector Type: | RJ12 |
| Length of Cable Included: | 60 FT |
| Camera Dimensions: | 77x78mm |
| Camera 2 | |
| Camera Model and Type: | RETRT600-1 (Turret) |
| Number of Cameras: | 2 |
| Image Sensor Type: | CCD |
| TV Lines: | 600 |
| Resolution: | 600 TVL |
| Effective Pixels: | 768(H) * 494(V) |
| Aperture: | Not Specified |
| Focal Length (35mm Equivalent): | 6-50mm |
| Pan-Tilt-Zoom Capability: | No |
| Optical Zoom: | No |
| Angle of View: | Not Specified |
| Color or Black and White: | COLOR |
| Wireless Camera-DVR Connection: | Wired |
| Audio Capability: | No |
| Number of Infrared LEDs: | 42 |
| Night Vision Distance: | 130 FT |
| Recommended for Outdoor Use: | YES |
| Weather Resistance (IP Rating): | IP66 |
| Operating Temperature: | 0°F - 122°F |
| Operating Humidity: | 0%RH - 70%RH |
| Tamper Protection: | Yes |
| Compatible DVRs: | BNC type DVRs |
| Compatible Cables and Connector Type: | Coax cable with BNC type connection |
| Length of Cable Included: | None |
| Camera Dimensions: | 140mm(W)x111mm(H)x180mm(D) |
| Technical Support | |
| Phone Number: | 866-625-7386 |
| Hours of Availability: | 8am-6:30pm central time |
| Web Support URL: | www.revoamerica.com |
| Package Contents | |
| (1) R16DVR4 (16 Channel DVR) | |
| (4) RCTS30-3 (Mini Turret Cameras) | |
| (2) RETRT600-1(Turret Cameras) | |
| (4) R60RJ12C (60 ft. RJ12 Cables) | |
| (1) Mouse | |
| (1) Remote | |
Assembled Country
Korea
Component Country
Imported
