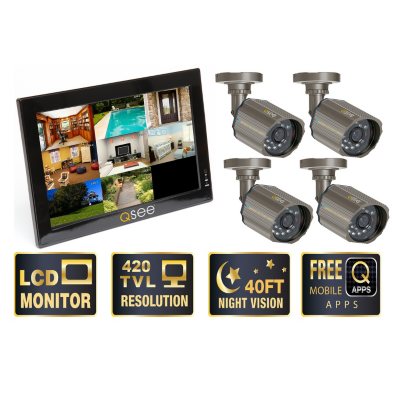

Q-See 10" LCD Monitor with Built-in 8 Channel Surveillance DVR with 4 Premium CCD Cameras & 500GB HDD

by Q-See | Item  #: 374344 | Model #:  QC40108-418-5 | (1) |
Q-See 10



We're sorry, this item is not available in your selected Club.  Check another Club

About this item

  • Weatherproof cameras provide up to 40' of night vision each.
  • Mobile phone surveillance available on iPhone, iPad, Android, Symbian OS, Windows OS, and Blackberry.
  • Compatible with Mac and PC
  • Receive instant email alerts and snapshot images when motion is detected
  • Description

    • 10" LCD Observation Monitor
    • 8 Channel DVR integrated into the slim LCD monitor
    • Four cameras with 420TV Lines of Resolution
    • Remote internet monitoring (up to 10 users at the same time)
    • Customize up to 4 additional cameras when you need
    • Backup and retain important footage on a PC, Flash Drive or USB Hard Drive
    • Send email alerts up to 3 different email addresses
    • Includes Pre-installed 500GB Hard Drive

    Specifications

    System
    Number of Cameras:4 Color 420TVL CCD Cameras
    Number of Channels:8
    Hard Drive Space:500GB Hard Drive
    Wired or Wireless:Wired
    Average Minimum Setup Time:1 hour
    DVR
    DVR Model:QC40108
    Number of Channels:8
    Number of Channels with Audio:4
    Hard Drive Size:500GB Hard Drive
    Maximum Hard Drive Expandability:Supports 1 SATA HDD up to 500 GB
    Recording Resolution:NTSC:D1(704*480), CIF(352*240)
    Recording Frames per Second:60 ips/D1, 240 ips/CIF
    Recording Compression:H.264
    Recording Modes Available:Continuous, Scheduled, Alarm, Motion Detection
    Wireless Camera Receiver:Not Available
    Video Motion Detection Recording:Yes
    Pre-Event Recording/Capacity:Not Available
    Mobile App Viewing:iPad, iPhone, Blackberry, Android, Windows OS, Symbian OS
    E-Mail Alert Notification:Receive email alert notifications on motion detection.
    Maximum Number of Remote Viewers:Up to 10 viewers at the same time
    Playback and Search Options:2x
    Data Backup Options:PC, Flash Drive or USB Hard Drive
    Digital Zoom:2x Digital zoom
    Pan-Tilt-Zoom Controls:1 RS-485 Connection (PTZ Camera Not included)
    Still Frame Capture:Provides snapshot email alerts upon motion detection
    Alarm Terminal Trigger Recording / # of Inputs:4
    External Alarm Ouput Contact(s):1
    Operating System:NTSC
    Included Accessories:Remote Control, USB Mouse, Power Supply, RJ-45 Ethernet Network Cable
    Camera Cable Connection Type:BNC
    Compatible Cameras:Compatible with all cameras from Q-See
    DVR Dimensions:10" x 10" x 4"
    Camera
    Camera Model and Type:QSDS3612D Standard
    Number of Cameras:4
    Image Sensor Type:1/4 Sony CCD Image Sensor
    TV Lines:420
    Resolution:420 TV Lines
    Effective Pixels:Not specified
    Aperture:Not specified
    Focal Length (35mm Equivalent):3.6mm
    Pan-Tilt-Zoom Capability:Not available
    Optical Zoom:Not available
    Angle of View:50° to 55° Field of View
    Color or Black and White:Color
    Wireless Camera-DVR Connection:Not available
    Audio Capability:Not available
    Number of Infrared LEDs:24
    Night Vision Distance:40 feet
    Recommended for Outdoor Use:Yes
    Weather Resistance (IP Rating):Not specified
    Operating Temperature:14°F to 122°F (-10°C to 50°C)
    Operating Humidity:Not specified
    Tamper Protection:Yes
    Compatible DVRs:Compatible with all DVRs from Q-See
    Compatible Cables and Connector Type:BNC
    Length of Cable Included:60 feet
    Camera Dimensions:3.36" x 2.31" x 2.15"
    Monitor
    Type:LCD
    Size:10"
    Signal Inputs:Not specified
    Maximum Resolution:Not specified
    Aspect Ratio:Not specified
    Native Contrast Ratio:Not specified
    Brightness (NITS):Not specified
    Response Time:Not specified
    Viewing Angle:Not specified
    Speakers with Volume Control:Not specified
    Technical Support
    Phone Number:877-998-3440
    Hours of Availability:8:30am-5pm Pacific time zone, Mon-Fri
    Web Support URL:http://www.q-see.com/support
    Package Contents
    (1) 10-inch LCD Monitor with Built-in 8 Channel H.264 DVR
    (4) Camera kit with 3-Axis Bracket
    (1) Power supply for DVR 12V /3A
    (1) Power adapter with 4-way power splitter for cameras
    (4) 60 ft. BNC video, power cable
    (1) RJ-45 Ethernet network cable
    (1) BNC to RCA Video cable
    (1) Remote control
    (1) USB Mouse
    (1) CD with manuals and software
    (1) Quick Start Guide

    Assembled Country

    USA

    Assembled Size

  • 10"W x 10"L x 4"H
  • 26 lbs.
  • Component Country

    USA And Imported
