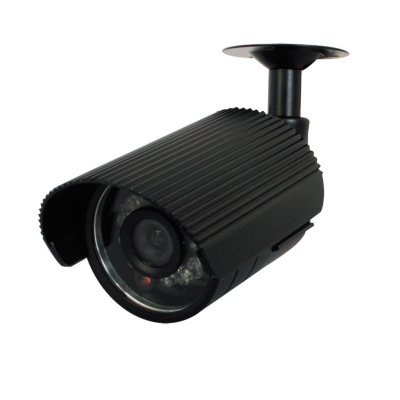

Piczel Model 155 Weatherproof IR Bullet Camera with Sun Shield, Super HAD CCD™ Imager, and Audio
Description
Durable High-Tech Construction
The cast aluminum case insures many years of operational durability and service. Concentric cylinders house the CCD imager and the IR LEDS, developing a void between the two and the eliminating the conduction of IR light into the camera's lens. This type of design lowers the halo effect in the camera's nighttime video output. Polished optical glass lens will remain clear and not haze over time.
Accurate Image Reproduction
Accurate daylight color reproduction is ensured by the Super HAD CCD™ imager. "White" colored grass, trees, and other similar vegetation is not an issue as displayed by lower end CMOS/IR LED type cameras.
Wide Angle Coverage
The 3.6mm wide angle lens generates a 20’ (vertical) x 26’ (horizontal) field of view at a distance of 20'. 12 IR LEDs allow night vision up to 40' for reflective objects and 10' for facial recognition.
Camera Placement
Care should be taken when mounting the camera outdoors to place it under an awning, eave, or soffit to protect the camera's microphone aperture from direct rain. Monitoring or recording audio can be helpful around the home or in a lab situation. Consult with your local and State authorities on the proper use and notifications that may be required in your area when installing a camera with audio in a public place.
Specifications
| Camera | |
| Camera Type: | Indoor/Outdoor IR Bullet with audio |
| Number of Cameras: | 1 |
| Image Sensor Type: | Sony Super HAD CCD™ |
| TV Lines: | 420 |
| Resolution: | NTSC:510(H)×492(V) |
| Effective Pixels: | 250K |
| Aperture: | F2.0 |
| Focal Length (35mm Equivalent): | 3.6mm (20mm Equivalent) |
| Pan-Tilt-Zoom Capability: | Not Available |
| Optical Zoom: | Not Available |
| Angle of View: | 92 degrees |
| Color or Black and White: | Color |
| Wireless Camera-DVR Connection: | Not Available |
| Audio Capability: | Yes |
| Number of Infrared LEDs: | 12 |
| Night Vision Distance: | 40' Reflective Objects, 10' Facial Recognition |
| Recommended for Outdoor Use: | YES, should be mounted under protection from direct rain. |
| Weather Resistance (IP Rating): | IP66 |
| Operating Temperature: | 14F° ~ 122°F |
| Operating Humidity: | 95% Max |
| Tamper Protection: | Not Available |
| Compatible DVRs: | All Piczel brand DVRs, plus all professional brands (BNC is the CCTV Industry Standard) |
| Compatible Cables and Connector Type: | BNC Video / RCA Audio /2.1mm DC Power - Piczel 50' Model 2110 or Piczel 100' Model 2120 |
| Length of Cable Included: | 50' |
| Camera Dimensions: | 2.1"H x 3.4"D | Technical Support |
| Phone Number: | 1-800-774-0284 |
| Hours of Availability: | 8:00AM - 9:00PM M-F & 10:00AM - 4:00PM Sat. Eastern Time Zone |
| Web Support URL: | www.piczel.com | Package Contents |
| Camera | |
| 50' Video/Audio/Power Cable | |
| Regulated Power Supply | |
| Swivel Mount Bracket | |
| Mounting Hardware | |
| Window warning decals | |
Details
Assembled Country
China
Assembled Size
Component Country
Imported
Warranty Information
1 year limited manufacturer's warranty.There is no additional information available for this item.
