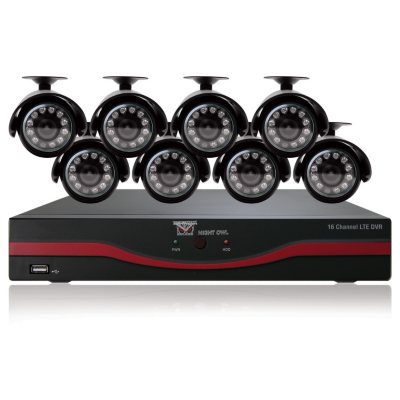

Night Owl 16 Channel Security System with 8 x 420TVL Cameras, 30' Night Vision, and 500GB DVR
Electronics & Computers
Security & Surveillance
Night Owl 16 Channel Security System with 8 x 420TVL Cameras, 30' Night Vision, and 500GB DVR
Night Owl 16 Channel Security System with 8 x 420TVL Cameras, 30' Night Vision, and 500GB DVR
by Night Owl
|
Item# 582613
|Model#:LTE-168500
|
Description
- Night Owl 16 ch, D1, H.264, 500GB, 8-420TVL cams with 30' Night Vision
- PC/MAC,Smartphone, Internet, Night Owl Lite App.
- 16 Channel, 500GB, D1 recording, H.264, Internet, PC/MAC.
- Eight 420TVL, cameras with 30' Night Vison, 20' Facial Recognition
- Smartphone viewing, Night Owl App for ease of use.
- 60' of cable for each camera.
- Tech Support 24/7 365 Days, 1-866-390-1303/www.nightowlsp.com.
- Mouse, remote control, Ethernet Cable, BNC to RCA Cable-connect to TV
- Quick Setup Guide, English & Spanish.
- www.nightoelsp.com for How-To-Videos, software upgrades, manuals.
Specifications
| System | |
|---|---|
| Number of Cameras: | 8 x 420TVL, cameras with 30' Night Vison, 20' Facial Recognition |
| Number of Channels: | 16 Channels |
| Hard Drive Space: | 500GB |
| Wired or Wireless: | Wired |
| Average Minimum Setup Time: | 1-2 hours |
| DVR | |
| DVR Model: | 16 Channel |
| Number of Channels: | 16 Channels |
| Number of Channels with Audio: | 1 |
| Hard Drive Size: | 500GB |
| Maximum Hard Drive Expandability: | 2TB SATA |
| Recording Resolution: | NTSC:D1(704*480),HD1(704*240),CIF(352*240) |
| Recording Frames per Second: | 60 fps/D1, 120 fps/HD1, 240 fps/CIF |
| Recording Compression: | H.264 |
| Recording Modes Available: | Motion Activated,Continuous, Time Scheduled |
| Wireless Camera Receiver: | Not specified |
| Video Motion Detection Recording: | YES |
| Pre-Event Recording/Capacity: | 5 seconds |
| Mobile App Viewing: | Night Owl Lite App |
| E-Mail Alert Notification: | YES |
| Maximum Number of Remote Viewers: | 7 (5 simultaneously) |
| Playback and Search Options: | Event, Time, Date |
| Data Backup Options: | USB Flash drive |
| Digital Zoom: | On Playback |
| Pan-Tilt-Zoom Controls: | YES |
| Still Frame Capture: | YES |
| Alarm Terminal Trigger Recording / # of Inputs: | Not specified |
| External Alarm Ouput Contact(s): | No |
| Operating System: | NTSC |
| Included Accessories: | IR Remote Control, Mouse, CMS Software, Night Owl Lite App |
| Camera Cable Connection Type: | BNC |
| Compatible Cameras: | All Night Owl and all Industry Standard BNC connections |
| DVR Dimensions: | 11.8 X 9.9 X 2.4" |
| Camera 1 | |
| Camera Model and Type: | 420TVL Hi-Res CMOS |
| Number of Cameras: | 8 |
| Image Sensor Type: | CMOS |
| TV Lines: | 420TVL |
| Resolution: | 420TVL |
| Effective Pixels: | 652*582 |
| Aperture: | Not specified |
| Focal Length (35mm Equivalent): | Not specified |
| Pan-Tilt-Zoom Capability: | No |
| Optical Zoom: | No |
| Angle of View: | 42 degrees field of view |
| Color or Black and White: | Color |
| Wireless Camera-DVR Connection: | Not specified |
| Audio Capability: | 1 Channel Input RCA , 1 channel RCA output |
| Number of Infrared LEDs: | 11 |
| Night Vision Distance: | 30' |
| Recommended for Outdoor Use: | Yes |
| Weather Resistance (IP Rating): | IP65 |
| Operating Temperature: | minus 14F to 104 F |
| Operating Humidity: | Not specified |
| Tamper Protection: | No |
| Compatible DVRs: | All Night Owl DVRs & all Industry Standard DVRs with BNC connections |
| Compatible Cables and Connector Type: | All Industry Standard BNC connections/power |
| Length of Cable Included: | 60' per camera |
| Camera Dimensions: | 2.0 X 3.0 X 2.0" |
| Technical Support | |
| Phone Number: | 1-866-390-1303 |
| Hours of Availability: | 24/7, 365 Days a year / English & Spanish |
| Web Support URL: | www.nightowlsp.com |
| Package Contents | |
| 1 x 16 Channel DVR, 500GB, Internet, Smartphone | |
| 8 x 420TVL CMOS, 30' Night Vision Cameras | |
| 8 x 60' BNC Camera Cables | |
| 2 x 4 way Power Splitter for Cameras | |
| 1 x Remote Control | |
| 1 x Mouse | |
| 1 x Ethernet Cable | |
| 1 x BNC to RCA cable - to connect to your TV | |
| 1 x Quick Setup Guide, English & Spanish | |
| 1 x Software CD | |
| 3 x Night Owl Security Stickers | |
| 3 x DC 12V Power Adapter DVR & two for Cameras | |
Details
Assembled Country
China
Assembled Size
Component Country
Imported
Warranty Information
1 Year Parts & Labor
